product core function is meterial curshing, conveying, mixing, dispersing, homogenizing, emulsifying, refining, it is widely used in food, pharmaceutical, commodity chemicals, industry of fine chemicals, petrochemical, papermaking chemicals, pesticides, chemical fertilizers, plastic, rubber, paint,coating meterial and so on.
Summary:

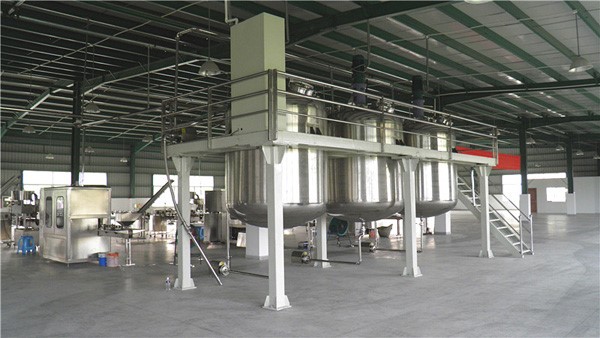

The whole set of medicine, food and cosmetics consisting of vacuum homogeneous emulsifying unit, stainless steel stir tank, high shear emulsifying machine, automatic feeding machine, automatic filling machine, pipeline system, control system, etc. It is high degree of automation, it is completely seal production operation, and the production conforms to the GMP production management standard.
Characteristic:
1.vacuum homogeneous emulsifying unit: the particles of 200nm-2um are quickly broken through heating, dispersing, stirring and homogenizing to mix meterial uniform, main emulsifying pot is in a vacuum, the bubbles are removed in time which in the stir process, so as to ensure of glossy, high quality product.
2. Stainless steel stir tank:: mixing form is diverse to meet different process requirements; inside and outside of the tank mirror polishing, no residue, easy to clean.
3. High shear emulsifying machine: emulsifier consists of intermittent and in-line type, the principle of which is to disperse and mix uniform the material in a very short time through rotating one or more pairs of high precision matching stator at high speed.
4. Automatic filling machine: full automatic liquid filling machine adopts straight line filling, machine electrical integration control, superior performance, it comform to the international mechanical design concept..
5.Control system: it monitor by PC+PLC (DSC field bus), metering system adopts weighing or flow metering, high precision, good stability, fast reaction speed and long service life, precise measure the ingredient, and programmable Logic Controller (PLC) and analog input module all adopt the products of international famous companies. They have compact structure, strong anti-interference ability, high reliability and stability.
Main application areas：
Application industry main products
Washing products: bath foam, hair conditioner, shampoo, moss, laundry detergent, softener.
Cosmetics: lipstick, lipstick lippie, face cream, skin cream, cleanser, face mask.
Household cleaning products: Detergent, floor cleaner, toilet cleaner, fume cleaner, carpet cleaner
Spices: Perfume, perfume emulsion, daily essence.
Fragrant product: Mango juice, ketchup, peanut butter, chocolate paste, seasoning, fruit tea, drinks
Pharmaceutical industry: Various kinds of injections, cough syrup, ointment, antibiotics, protein dispersant
Technical parameter :
ADRZ serial
|
Model
|
Processing(m3/h)
|
Power (KW)
|
External size
(L×W×H mm)
|
Weight
(kg)
|
|
ADRZ-50B
|
50
|
～12
|
1200×1200×1700
|
500
|
|
ADRZ-100B
|
100
|
～15
|
1250×1250×1800
|
650
|
|
ADRZ-200B
|
200
|
～20
|
1300×1300×2000
|
920
|
|
ADRZ-300B
|
300
|
～25
|
1500×1500×2100
|
1550
|
|
ADRZ-500B
|
500
|
～30
|
1600×1800×2500
|
2100
|
|
ADRZ-1000B
|
1000
|
～50
|
1800×1800×2500
|
2600
|
|
ADRZ-1500B
|
1500
|
～70
|
1900×1900×2850
|
3100
|
